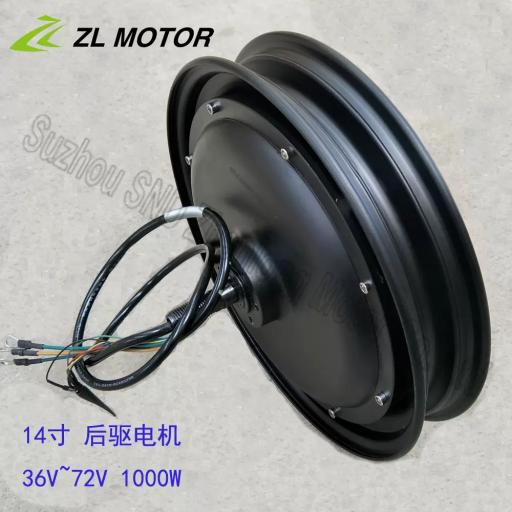

36V48V14-inch modified integrated wheel motor bicycle high-power front drive motor 1000W rear drive motor

The speed can be customized, please contact customer service!

The motor voltage, power and speed are customized according to customer requirements.

Rear drive specifications:

Product number: G-M078

Brake: Standard 6-hole disc brake for bicycles (hole spacing 44mm)

Gear opening: 135mm

Rated voltage: 36V/48V/60V

Product power: 1000W

Style: Hub motor

Device: Rear drive

Shaft diameter: 14mm

Motor diameter: 270mm

Outgoing direction: Left outgoing

Flywheel: British flywheel (1~7 speeds are all OK)

Front drive specifications:

Brake: Standard 6-hole disc brake for bicycles (hole spacing 44mm)

Gear opening: 100mm

Rated voltage: 36V/48V/60V

Product power: 1000W

Style: Hub motor

Device: Front drive

Shaft diameter: 14mm

Motor diameter: 270mm

Outgoing direction: Left outgoing

Flywheel : Cannot be installed

Front and rear drive:

Speed: 45 km/h at 48V

Certification: CE certification

Applicable tires: 14*2.5, 14*2.125, 2.75-10, 3.00-10

Motor speed: 750 RPM

Recommended controller current: 35A~45A, 12 tubes 1000W, 15 tubes 1200W or 18 tubes 1500W

Please note the tire model you need to use when ordering, so that we can arrange the delivery of the appropriate wheel hub! ! !

All motors are equipped with screws and nuts.

All pictures of motors and controllers on the Internet are for reference only. Because the appearance will be adjusted according to the market and market, the actual goods shipped shall prevail. You can consult the customer service to confirm the appearance before buying. Please be careful if you mind! ! ! Thank you! ! !

Customized products, only warranty, no return or exchange, thank you!
